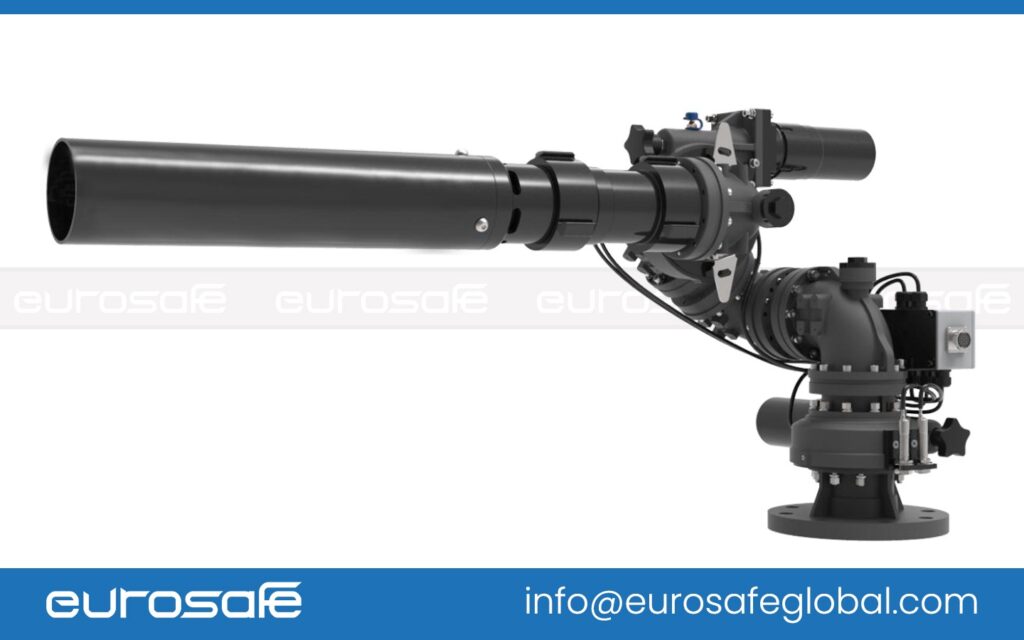

REMOTE CONTROL FIRE WATER FOAM MONITOR
DESCRIPTION
A REMOTE CONTROL FIRE WATER FOAM MONITOR is an innovative firefighting device designed to enhance fire response capabilities by allowing operators to control its functions from a safe distance. This Remote Control Fire Water Foam Monitor combines advanced technology with a high level of adaptability, making it a vital tool for managing fires in various settings, from industrial facilities to outdoor environments.
Equipped with remote control capabilities, this monitor can be directed to target specific areas with a powerful stream of water or fire-suppressing agents. Operators can adjust the monitor’s aim, flow rate, and spray pattern remotely, enabling precise firefighting even in challenging or hard-to-reach locations. This level of control minimizes the exposure of firefighting personnel to danger and hazardous conditions.
The Remote Control Fire Water Foam Monitor is particularly valuable in scenarios where human intervention might be risky, such as fires involving toxic substances, flammable gases, or high-heat environments. Its ability to be operated from a distance ensures that firefighting efforts remain effective while safeguarding the well-being of responders.
Whether used in industrial complexes, storage facilities, or other settings prone to fire emergencies, the Remote Control Fire Water Foam Monitor stands as a pivotal tool in modern firefighting, enabling quicker, safer, and more targeted fire suppression actions.
FEATURES
- Aluminum alloy construction, hard anodized
- Constant flow rate,24/32/48 LPS
- Vertical travel of 180°,from -90° to +90°
- 360° rotation horizontally;
- Available for water and foam both
- Electric driver and control box are waterproof
- Optional power supply 12V/24V DC(optional),or 100-230AC
- NFPA Compliance
TECHNICAL PARAMETER
Model Number | ES0304-RCMF -24B | ES0304-RCMF -32B | ES0304-RCMF- 40B | |
Flow Rate | 1440 LPM | 1920 LPM | 24000 LPM | |
Working Pressure | 8 Bar | 8 Bar | 8 Bar | |
Max. Reach @ 8 bar | 45 meters | 55 meters | 60 meters | |
Foam Max. Reach @ 8 bar | 40 meters | 50 meters | 55 meters | |
Max Range Of Motion | -90° to +90° Vertically, 360° Rotation, other degree available | |||
Turing Speed | 24°/Second rotation,10°/Second vertical | |||
Power Supply | DC 24V is standard | |||
Power Consumption | 24V @ 7.5A | |||
Waterway Size | 2.5” (65mm) | |||
Monitor Outlet | 2.5 (65mm) NH | |||
Monitor Inlet | Flange 2.5” ANSI 150# is standard, other size and standard available | |||
Material | Monitor & Nozzle- Hard coated anodized aluminum alloy | |||
Control System | ICS-01 or VMCS-01 |
